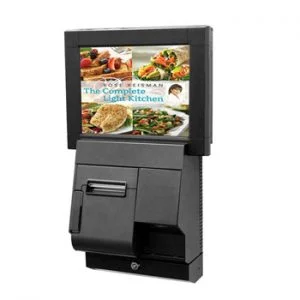

Ticket Kiosk

Robuust

Wandmontage

Compact

High speed ticket-printer

System
CPU : FCBGA559 (on Board) Atom D2550
Frequency 1.86GHz , L3 Cache 1 MB
Main Board PC25N
System Chipset Intel® Cedarview & NM10
BIOS AMI 16-Mbit SPI Flash BIOS
Memory Technology DDR3 1333/1600 MHz, max. Capacity 4 GB
Socket 1 x 204-pin SO DIMM
Internal Display 12″ Panel Size 12.1″
Resolution 800×600
Viewing Angle Right : 80 / Left : 80 / Upper : 65 / Lower : 75 degree
Brightness 450 cd/m2, Contrast Ratio 700
Response Time 35ms (Rising : 25 ms / Falling : 10 ms)
Internal Display 15″ Panel Size 15.0″
Resolution 1024×768
Viewing Angle Horizontal : 80 / Vertical : 70 degree
Brightness 250 cd/m2, Contrast Ratio 700
Response Time 16ms (Rising : 5 ms / Falling : 11 ms)
External Display Digital Display 1920 x 1200, Max. data rate up to 1.65 Gb/s
Touchscreen 12″ and 15” Touchscreen Type 5 Wire Resistive

I/O Interface
USB 2.0 x 6, Serial Port COM 1 : RS-232 ; COM2 :(Optional: RS-422/485) ; COM4 :Option
Controller Realtek RTL8111E-VC-CG, Connector RJ45 x 1
Audio Chipset Realtek ALC662-GR
Speaker Internal : Speaker 8Ω/2W x2 ; External : Speaker out x1 , Mic in x1
Storage HDD Supports one 2.5” SATA HDD
Scanner (Optional) IS3480 1D omni-direction (Optional), A-52M CCD-2D (Optional)
Printer (Optional) NP-K3052D 3″ (80mm), Auto Loading, Paper near-end detection
TMT-88 79.5 mm ± 0.5 mm {3.13″ ± 0.02″}, 180 dpi ×180 dpi [dots per 25.4 mm {1″}]
MSR (Optional) MSR220HK Reference Standards : ISO 7810 ,7811
Recording Method : Two-frequency coherent phase(F2F)
Decoding Method : ISO : Ttack1-IATA , Track2-ABA , Track3-THRIFT
Card Swiping Direction : Bi-Direction
Wifi (Optional) RTL8188CUS-SC5x 802.11n 1T1R Solution for 2.4G Hz band
Power Type Adapter 120W/19V FSP120-AAB
Power Input DC 19V, Battery Lithium 3 V / 220 mAH
Peripheral & Storage Devices
Touchscreen 12.1″ Resistive type
Drive Bay 2.5″ HDD SATA interface
Optional Device Magnetic card reader (swipe type)
3” Thermal receipt printer
Bar code scanner
