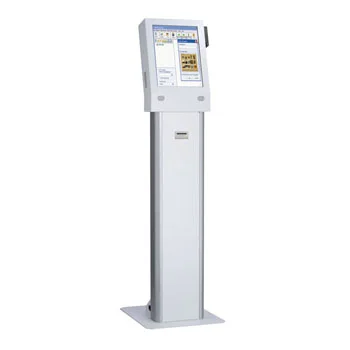

Check-in Kiosk

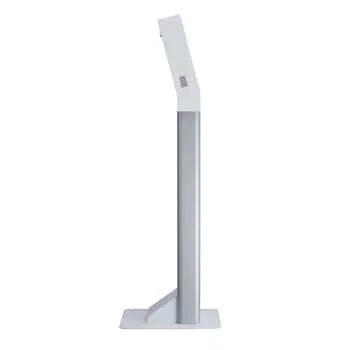

Slank profiel

Compact

Robuust design

Processor System CPU (Socket FCLGA1155) Intel® i7-3770S Intel® i5-3550S Intel® I3-3220 Intel® Celeron® G1620 Intel Pentium G850
Frequency 3.1GHz 3.0GHz 3.3GHz 2.7GHz 2.9G Hz
L3 Cache 8M  6M  3M  2M 3M
Main Board PC67H
System Chipset Intel® BD82H77/Q77 FCBGA942
BIOS AMI 64-Mbit SPI Flash BIOS
Memory Technology DDR3 1333/1600 MHz
Max. Capacity 8 GB
Socket 2 x 240-pin DIMM
Internal Display 15″ Panel Size 15.0″
Resolution 1024×768
Viewing Angle Horizontal : 80 / Vertical : 70 degree
Brightness 250 cd/m2
Color Support 16194277/262144 Color
Contrast Ratio 700
Response Time 16ms (Rising : 5 ms / Falling : 11 ms)
External Display Digital Display 1920×1200, Max. data rate up to 1.65 Gb/s
CRT Max. resolution up to 1920×1200 true color
Touchscreen 15″ Touchscreen Type 5 Wire Resistive
Surface Hardness 3H Pencil ,Pressure 750g/45°
Durability 10000000 times
Transparency 80% (±3%)
I/O Interface USB USB 3.0 x 2 ; USB 2.0 x 4
Serial Port COM 1: RS-232; COM 2: Default RS-232 (Optional: RS-422/485)
ESATA ESATA x 2
Ethernet Speed 10/100/1000 Mbps
Controller Realtek RTL8111E-VC-CG
Connector RJ45 x 1
Audio Chipset Realtek ALC662-GR
Speaker Internal: Speaker 8Ω/2W x2; External: Speaker out x1 , Mic in x1
Storage HDD Supports one 2.5” SATA HDD
Card Read YD-8V74 5.25″ Media Card reader
Read Only
Printer (Optional) NP-K3052D 3″ (80mm)
Auto Loading function
Paper near-end detection
NP-K04 2″
Auto Loading function
Paper near-end detection
RFID (Optional) RF 320 13.56M Hz Mifare ISO14443A Standard
Transponder : read only
MSR (Optional) MSR220HK Reference Standards : ISO 7810 ,7811
Recording Method : Two-frequency coherent phase(F2F)
Decoding Method : ISO : Ttack1-IATA , Track2-ABA , Track3-THRIFT
Card Swiping Direction : Bi-Direction
Wifi (Optional) RTL8188CUS-SC5x/8188ETV 802.11n 1T1R Solution for 2.4G Hz band
Power Power Type ATX 1U 180W (FSP180-50LE)
Power Input AC 100~240V @50~60Hz
Battery Lithium 3 V / 220 mAH
Peripheral & Storage Devices
Touchscreen 15″ Resistive type
Drive Bay 2.5″ HDD SATA interface
Optional Device Magnetic card reader ( swipe-type)
2″/3″ Thermal receipt printer
