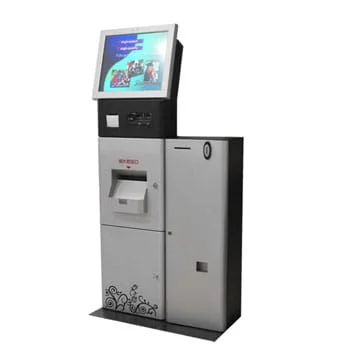

Self-service Kiosk

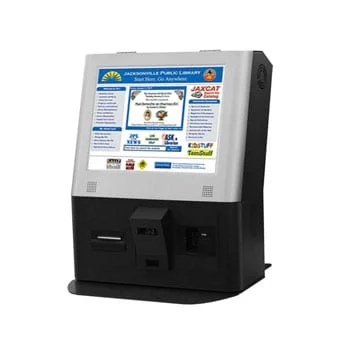

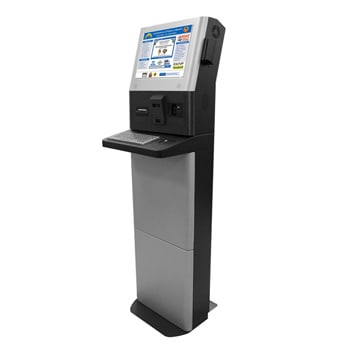

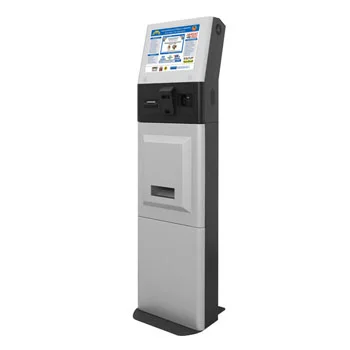

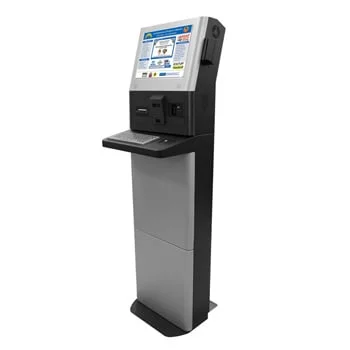

Zuil, Desktop en wandmontage

Robuust design

Compact

Processor CPU(Socket FCLGA1155) Intel i7-3770S Intel® i5-3550S Intel I3-3220 Intel® Celeron® G1620 Intel Pentium G850
Frequency 3.1GHz 3.0GHz 3.3GHz 2.7GHz 2.9G Hz
L3 Cache 8M 6M 3M 2M 3M
Main Board PC67H
System Chipset Intel® BD82H77/Q77 FCBGA942
BIOS AMI 64-Mbit SPI Flash BIOS
Memory Technology DDR3 1333/1600 MHz
Max. Capacity 8 GB
Socket 2 x 240-pin DIMM
Internal Display 15″ (LED Backlight) Panel Size 15.0″
Resolution 1024×768
Viewing Angle Horizontal : 80 / Vertical : 70 degree
Brightness 250 cd/m2
Color Support 16194277/262144 Color
Contrast Ratio 700
Response Time 16ms (Rising : 5 ms / Falling : 11 ms)
Internal Display 19″ (LED Backlight) Panel Size 19.0″
Resolution 1280×1024
Viewing Angle Horizontal : 85 / Vertical : 80 degree
Brightness 350 cd/m2
Color Support 16.7M
Contrast Ratio 1000
Response Time 5 ms
External Display Digital Display 1920 x 1200, Max. data rate up to 1.65 Gb/s
CRT Max. resolution up to 2048 x 1536 true color
Touchscreen 15″ Touchscreen Type 5 Wire Resistive
Surface Hardness 3H Pencil, Pressure 750g/45°
Durability 10000000 times
Transparency 80% (±3%)
Touchscreen 19″ Touchscreen Type 5 Wire Resistive
Surface Hardness 3H Pencil ,Pressure 1N/45°
Durability 35000000 times
Transparency 80% (±3%)

I/O Interface USB USB 3.0 x 2 ; USB 2.0 x 8
Serial Port COM 1: RS-232
COM 2 : Default RS-232(Optional: RS-422/485)
ESATA ESATA x 2
Ethernet Speed 10/100/1000 Mbps
Controller Realtek RTL8111E-VC-CG
Connector RJ45 x 1
Audio Chipset Realtek ALC662-GR
Speaker Internal: Speaker 8Ω/2W x2
External: Speaker out x1, Mic in x1
Storage HDD Supports one 2.5” SATA HDD
DVD Supports one 5.25″ DVD
Card Read YD-8V74 5.25″ Media Card reader
Read Only
MSR (Optional) MSR220HK Reference Standards : ISO 7810 ,7811
Recording Method : Two-frequency coherent phase(F2F)
Decoding Method : ISO : Ttack1-IATA , Track2-ABA , Track3-THRIFT
Card Swiping Direction : Bi-Direction
Magtek 99875375 Reference Standards : ISO 7810 ,7811
Maximun length : Track1=50/Track2=25/Track3=70 Characters
Recording Method : Two-frequency coherent phase(F2F)
Half Card USB Insertion Reader
Card Reader (Optional) YD-8V74 5.25″ Media Card reader
Read Only
Scanner (Optional) IS3480 1D omni-direction
Printer (Optional) NP-K3052D 3″ (80mm)
Auto Loading function
Paper near-end detection
NP-K204 2″
Auto Loading function
Paper near-end detection
Keyboard (Optional) SPC288BG Standard QWERTY layout
Integrated stainless steel trackball (25mm in dia,Left /right click buttons)
Fn Assemble keys to make the functional of F1-F12 without increase keys
Qwerty keyboard, total keys: 68 (including two selection keys)
Protection level: IP65 static / IP54 dynamic
Power Power Type ATX 1U 180W
Power Input AC 100~240V @50~60Hz
Battery Lithium 3 V / 220 mAH
Peripheral & Storage Devices
Touchscreen 15″/19″ Resistive type
Drive Bay 2.5″ HDD SATA interface
Optional Device 2″/3″ Thermal receipt printer
Barcode scanner
Motion sensor
IC/Magnetic card reader (insert type)
Metal keyboard & track pad
Wireless LAN
Mechanical / Environmental
Construction Enclosure: heavy-duty steel
Kiosk design customizable
