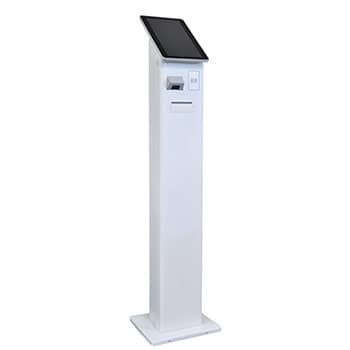

Retail Kiosk

Informatiezuil, Ticketkiosk, Check-in Kiosk

Robuust design

Slim-profile

Processor System CPU ARM Cortex-A9 4 cores Processer N3010
Frequency 1.1 GHz Base Frequency 1.04 GHz , Burst Frequency 2.24 GHz
L2 Cache 512 KB 2 MB
Main Board AR 100 MS-98I8
Memory Technology DDR3 1066 MHz DDR3L 1600 MHz
Max. Capacity 1 GB 8 GB
Socket On Board 1 x 204-pin SO DIMM
Internal Display 15″ Panel Size 11.6″
Resolution 1366 x 768
Viewing Angle Right : 85 / Left : 85 / Top : 85 / Bottom : 85 degree
Brightness 220 cd/m2
Color Support 262K Color
Contrast Ratio 800 typ
Response Time 27 ms
Touchscreen 11.6″ Touchscreen Type Projected Capacitive
Surface Hardness 6H
Transparency 90%
I/O Interface USB USB 2.0 x 1
Ethernet Speed 10/100 Mbps 10/100/1000 Mbps
Controller SMSC LAN8720 Realtek RTL8111G GbE LAN
Connector RJ45 x 1 RJ45 x 2
Audio Chipset Realtek ALC5616,Ultra-Low Power Audio CODEC for Mobile Devices Realtek ALC887-VD2-CG HD Audio Codec
Speaker Internal : Speaker 8Ω/2W x2 Internal : Speaker 8Ω/2W x2
Storage NAND Flash 4GB SATA HDD
Micro SD Support SD3.0 Supports one 2.5”
Printer NP-K3052D 3″ (80mm)
Auto Loading function
Paper near-end detection
Scanner Honeywell
5180SR-1213A0R
CCD-2D
752×480 pixel CMOS area imager
RFID RF 320 13.56M Hz Mifare ISO14443A Standard
Transponder : read only
Wifi (Optional) RTL8188CUS-SC5x 802.11n 1T1R Solution for 2.4G Hz band
Power Power Type Adapter 50W/12V
Power Input AC 100~240V @50~60Hz
Battery Lithium 3 V / 220 mAH
