Industriële Panel Computer

Embedded panel

VESA

Supporting arm

Display Screen Size 10.4”
Resolution 800 * 600
Brightness 400cd/m2
Contrast Ratio 700:1
Touch Screen 5-wire resistive touch screen
System Processor Onboard AMD L x 800 500MHz/Intel® Atom™ E3845 1.91GHz/ Intel® Celeron J1900 2.0GHz
Chipset AMD Geode CS5536/Bay Trail
Memory AMD: Onboard 256MB DDR / Bay Trail: Onboard 4GB DDR3L memory

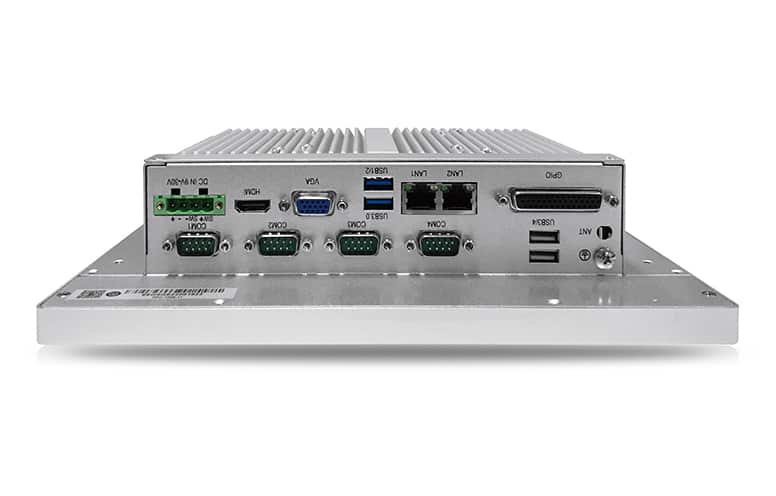

I/O Interface LAN AMD: 1 x 10/100Mbps RJ45 LAN port /Bay Trail: 2 x 10/100/1000 RJ45 LAN ports
COM Port AMD:3 x isolated COM ports( COM1~COM3 are RS-232, COM2 is RS-485 )

Bay Trail: 4 x COM ports( COM1~COM4 support RS232/422/485 mode)

USB AMD: 2 x USB2.0 /Bay Trail: 1 x USB3.0, 3 x USB2.0
PS/2 1 x KB/MS
VGA AMD: N/A      Bay Trail: 1 x VGA, 1 x HDMI
Others AMD:2 x 16bit encoder switch/ Bay Trail: 16-channel GPIO
Storage HDD Intel J1900: 16G mSATA
CF Card AMD:4GB/8GB CF Card  Intel E3845: 16GB CF card
Operating Temperature 0℃~+40℃ (Normal HDD)

-30℃~ 60℃  (Wide Temperature storage)

Storage Temperature -40℃~ 85℃
EMC EMC 3 Level
Front Panel Material High-strength Al-alloy
Mounting Method Embedded panel, VESA standard supporting arm
Power Supply DC24V (16-32V wide voltage input) or external AC 220V adapter / Bay Trail: DC24V(12~32V) input
Dimensions(W x H x D) AMD: 270mm × 215mm × 49.4mm/Bay Trail: 300mm x 240mm x 71.7mm
