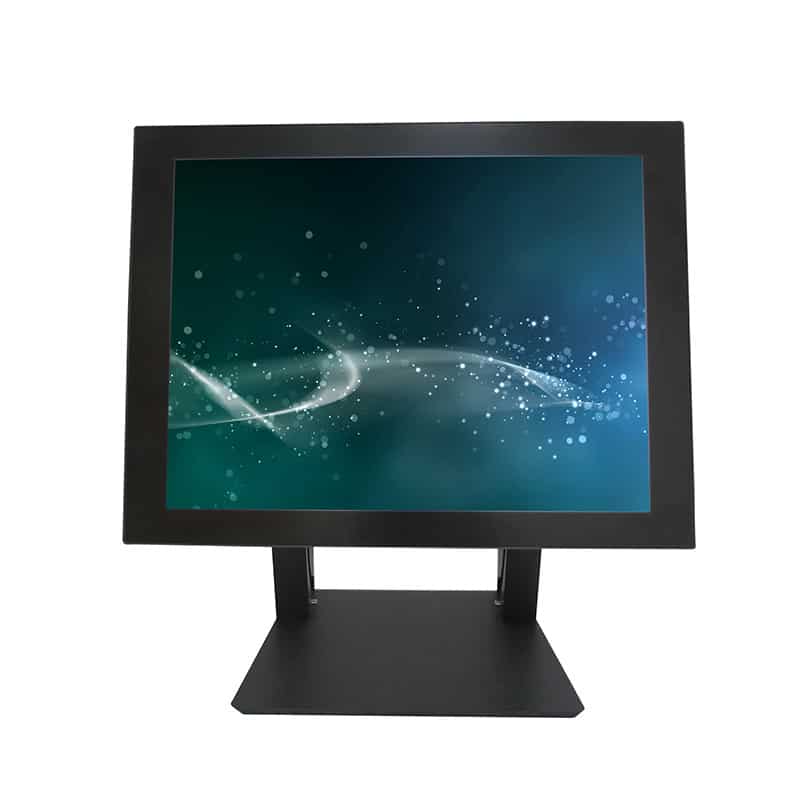

True-flat Panel PC

OS : Windows en Android

Option : MSR, RFID, 2nd Display, VFD, Printer

System CPU FCBGA559 (on Board) Atom D2550
Frequency 1.86GHz
L3 Cache 1 MB
Main Board PC25N
System Chipset Intel® Cedarviewl & NM10
BIOS AMI 16-Mbit SPI Flash BIOS
Memory Technology DDR3 1333/1600 MHz
Max. Capacity 4 GB
Socket 1 x 204-pin SO DIMM
Internal Display 15″ Panel Size 15.0″
Resolution 1024×768
Viewing Angle Horizontal : 80 / Vertical : 70 degree
Brightness 250 cd/m2
Color Support 16194277/262144 Color
Contrast Ratio 700
Response Time 16ms (Rising : 5 ms / Falling : 11 ms)
External Display Digital Display 1920 x 1200, Max. data rate up to 1.65 Gb/s

Touchscreen 15″ Touchscreen Type Projected Capacitive (PCAP)
Surface Hardness ≧6H
Transparency 85%
I/O Interface USB USB 2.0 x 4
Serial Port COM 1 : RS-232 ; COM2 : Default RS-232(Optional: RS-422/485)
Ethernet Speed 10/100/1000 Mbps
Controller Realtek RTL8111E-VC-CG
Connector RJ45 x 1
Audio Chipset Realtek ALC662-GR
Speaker Internal : Speaker 8Ω/2W x2
External : Speaker out x1 , Mic in x1
Storage HDD Supports one 2.5” SATA HDD
Power Power Type 19V/65W Power adapter FSP065-REB
Power Input DC 19V
Battery Lithium 3 V / 220 mAH
