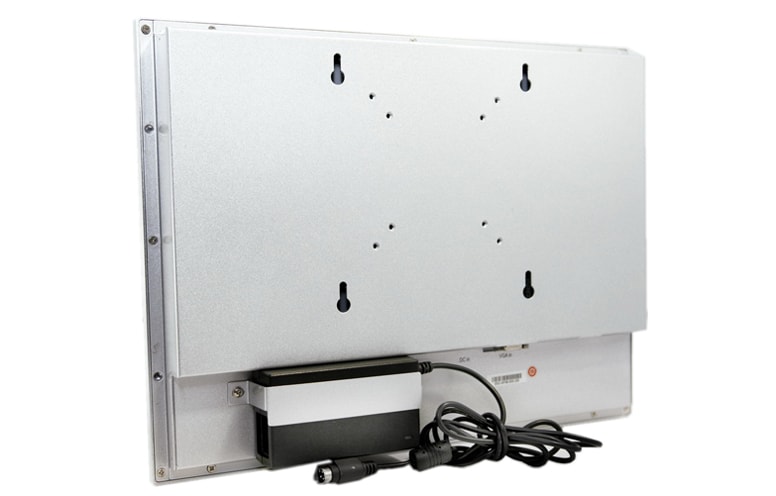

Industrial Panel Monitor

Power-save mode

VESA

Wall mount

Display Screen Size 15” TFT LCD  /  17” TFT LCD
Resolution 1024 * 768  / 1280* 1024
Brightness 350cd/m
Contrast Ratio 500:1  / 1000:1
Touch Screen 5-wire resistive touch screen
Supported Color 16.7M  / 16.2M
Input Interface VGA
Front Panel With OSD control key
Install VESA, Wallmount and Wall-embedded
Protection Level Front Panel IP65, IP64 for the whole PC
Vibration 5-19Hz/1.2mm amplitude, 19-200Hz/1.2g acceleration
Shock 15g peak acceleration (11 ms duration)
Weight About 4.5kg  / 7kg
Operating Temperature 0℃~55℃;5%~95%,40℃(non-condensing)
Storage Temperature -20℃~60℃;5%~95%,40℃(non-condensing)
Power Supply Supports DC12V or AC 100~240V input
Dimensions(W x H x D) 400mm × 300mm × 40mm / 411mm × 354.8mm × 55mm
