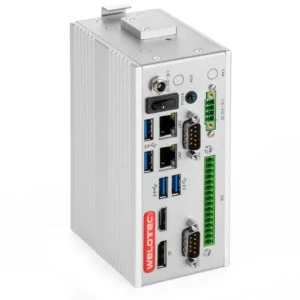

LTE Box PC

Robuust en Fanless

Option : Digital input / output

Power button : Yes
Reset button : No
Cooling : Fanless
TPM module : Yes (2.0)

CPU type : Intel® Atom™ x7-E3950 Processor
generation : Apollo Lake, Intel® Atom™
CPU socket : Soldered
CPU frequency : 1.6 GHz – 2.0 GHz
CPU cores : 4
L2 cache : 2 MB
Hyperthreading : No
Embedded: Yes

Memory / RAM:
Socket type : SO-DIMM
Number of slots : 1
Storage type : DDR3L
ECC : No
Frequency : 1866 MHz
Voltage : 1.35 V
Capacity : 2 GB (max. 8 GB)

Slot mSATA : 1
Interface for bays : SATA 2.0
Amount connections for bays : 1

Graphic type : On board integrated
Graphic chip : (GPU)Intel® HD Graphics 505
Graphic memory : Shared
Direct X Level : Level 12
OpenGL : 4.3
HDMI : 1
VGA : 1
Display port : 1
Amount simultaneous displays : 2
Resolution max. : 4096 x 2160 @ 60 Hz

Connector  TX : RJ45
10/100/1000BaseTX ports : 2

RS-232/422/4852, BIOS switchable (+2 optional bottom side)
CAN-Bus1 or 2 channel CAN2.0B or J1939 optional
USB 3.0 : 4
Line-in : 1
Line-out : 1
Digital Input : up to 16 optional, 8 per DB9
Digital Output : up to 16 optional, 8 per DB9
Digital Input/Output : 4DI/4DO, 2x Relay, optional
Other : 2x SIM Card Slot

mPCIe Full Size : 3
Power supply:
Power supply : 9 – 36 VDC
Power supply connector IN : +12 VDC

Housing material : Steel / Aluminium
Ingress protection : IP20
Dimensions : (W x H x D)64 x 140 x 92 mm
Weight : 500 g
MountingDIN Rail mount

Operating temperature range : -20 – +70 °C
Humidity : 5 – 95 %

CE : Yes
FCC Class A
RoHS : Yes
Microsoft Azure certified for IoT : Yes
